Overview

Out-of-Band authentication is a 3D Secure challenge method in which the Cardholder verifies a transaction through the Program Manager’s application, separately from the Merchant’s checkout or challenge screen.

During an OOB challenge, CLOWD9 acts as the integration layer between Apata, the Access Control Server (ACS), and the Program Manager. CLOWD9 sends the authentication request to the Program Manager and returns the authentication result to Apata.

OOB can be configured as the as the primary method, with another method such as OTP configured as a fallback or secondary method.

Prerequisites

Before OOB authentication can be used:

• OOB must be enabled for the applicable product
• The card must be enrolled for the biometric or OOB authentication method
• The product’s default and any applicable fallback authentication methods must be configured
• The Program Manager must provide CLOWD9 with an endpoint for receiving OOB authentication requests
• The Program Manager’s application must be able to notify the Cardholder, perform the authentication and return the result to CLOWD9

CLOWD9 uses the card’s existing enrolment and product configuration to determine the registered authentication type. CLOWD9 does not contact the Program Manager in real time to discover which authentication methods are available.

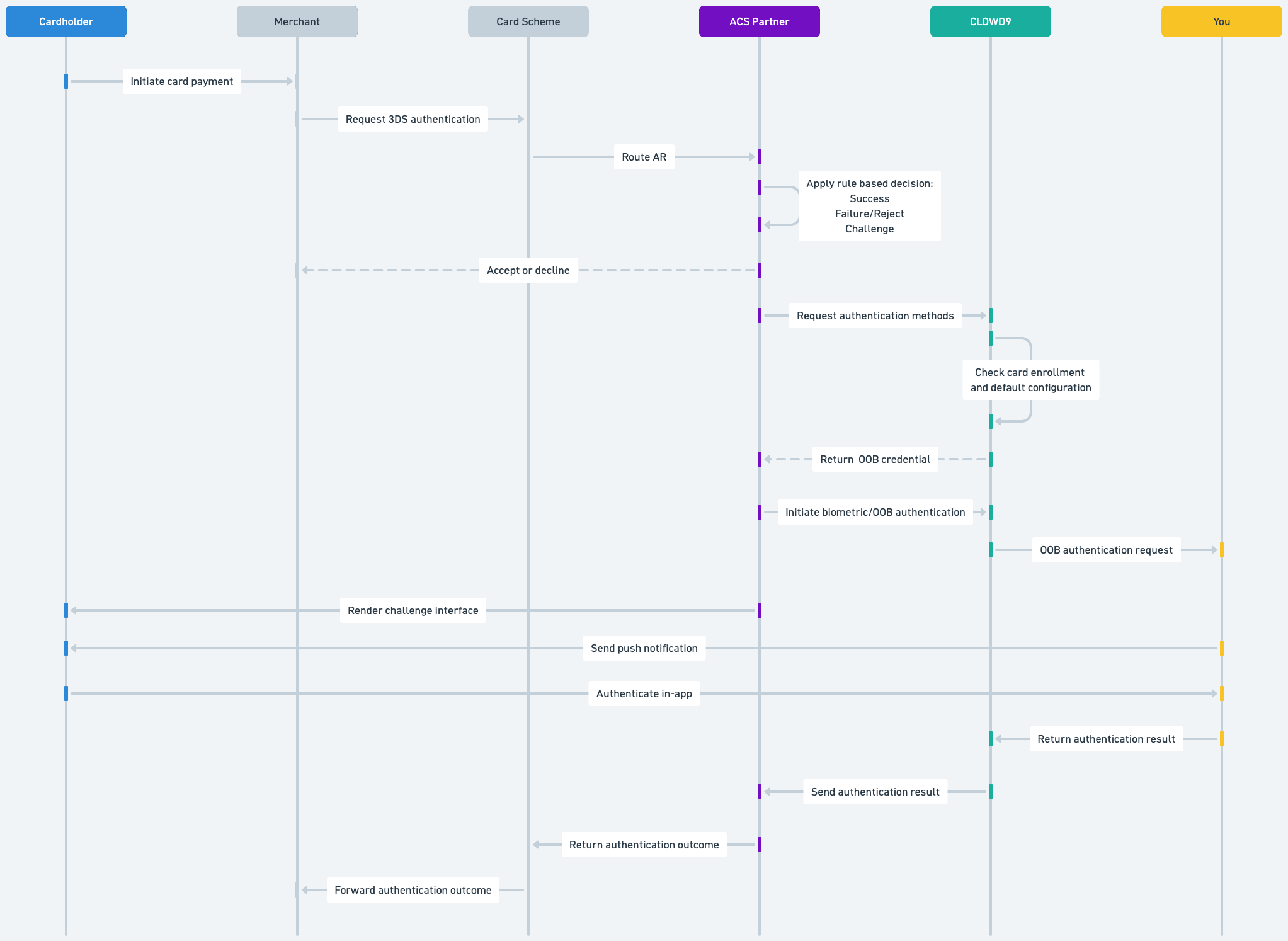

Authentication decision

When a Merchant initiates 3D Secure authentication, the Card Scheme routes the request to Apata (ACS Partner). Apata applies the configured authentication and risk rules and produces one of the following outcomes:

• Success: The Cardholder is authenticated without an additional challenge. Apata returns the successful authentication outcome to the Merchant, which may continue to payment authorisation
• Fail/Reject: Apata returns an unsuccessful authentication outcome to the Merchant. The Merchant determines whether to end the transaction or handle it according to its own rules
• Challenge: 3D Secure authentication is required, and Challenge screens are shown to the cardholder

Endpoint configuration

The Program Manager must provide CLOWD9 with the endpoint used to deliver OOB authentication requests. This endpoint is configured during the implementation process.

If the endpoint needs to be replaced after implementation, the Program Manager must follow the CLOWD9 Change Request process.

Important distinction

Successful OOB authentication completes the 3D Secure authentication stage. It does not authorise the payment itself.

After receiving a successful authentication result, the Merchant may continue with the separate payment authorisation request.

OOB Authentication Request

Authenticate Request:

 {
    "client_id": "123e4567-e89b-12d3-a456-426614174000",
    "card_id": "123e4567-e89b-12d3-a456-426614174001",
    "customer_id": "123e4567-e89b-12d3-a456-426614174002",
    "sp_transaction_id": "123e4567-e89b-12d3-a456-426614174003",
    "ds_transaction_id": "123e4567-e89b-12d3-a456-426614174004",
    "card_acceptor_id": "5999",
    "card_acceptor_name": "Amazon",
    "card_acceptor_country": "826",
    "transaction_category": "payment",
    "transaction_currency_code": "978",
    "transaction_currency_exponent": "2",
    "transaction_amount": "10000",
    "transaction_channel": "browser",
    "transaction_datetime": 1728478766,
    "challenged_datetime": 1728478766,
    "challenge_expiry_window": 10,
    "challenge_expiry_datetime": 1728478776
}

Authentication Response

Authenticate Response:

Succesful Example:

{
  "client_id" : "",
  "card_id" : "",
  "customer_id" : "",
  "sp_transaction_id" : "",
  "status" : "ok"
}

Fallback Example:

{
  "client_id" : "",
  "card_id" : "",
  "customer_id" : "",
  "sp_transaction_id" : "",
  "status" : "fallback"
}
